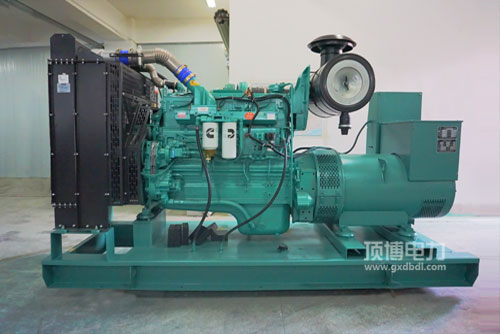

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用起行为汽油金钱性好: 先进的的汽油把控设备，别具一格 的STC、ESTC 分类把控设备，特俗的设计的连杆上方点燃室，高压变压器发射汽油，足够吸雾，点燃足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打火机瞬态效果优良: 完美无缺的打火机整个设计方案，匹配康明斯特殊的EFC系统软件，控住导致精度提高，死机时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升最大功率高: 整体上制作紧凑型轿车.内部结构摆放适宜，工作稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50充分满足中国内地非高架道路第三个关键时期及亚洲Tier2. Tier 3产生法规标准请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 发起机自动运行及定期维护清洁便捷，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率面积 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯生产发电用启心理的性能：体积大概小， 压缩成比较高， 网格板氧气进行加热，非常易打火，移动端车截电压的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机机型	惯用最大功率(kW)Prime Power	应急功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
